220V/1Ph Portable 2 Post Car Lifts For Home Garage Capacity 4000Kg
-
Highlight
220V/1Ph 2 post garage lift
,220V/1Ph 2 post car lifts for home garage
,2 post car lifts for home garage
-
Column Height3900
-
Shipping Weight660Kg
-
Lifting Height1900mm
-
Arm793-1123-1500mm
-
Capacity4000Kg
-
Column Thickness5mm
-
Warranty5 Years
-
Power Unit220V / 1Ph
-
Place of OriginChina
-
Brand NameVIZO
-
CertificationCE
-
Model NumberLS240
-
Minimum Order Quantity10 pcs
-
PriceNegotiation
-
Packaging Detailsmetal frame and carton box
-
Delivery Time25 Days
-
Supply Ability1000Sets/Month
220V/1Ph Portable 2 Post Car Lifts For Home Garage Capacity 4000Kg
9000lbs Clear Floor Lift Double Side Lock Release
LS240

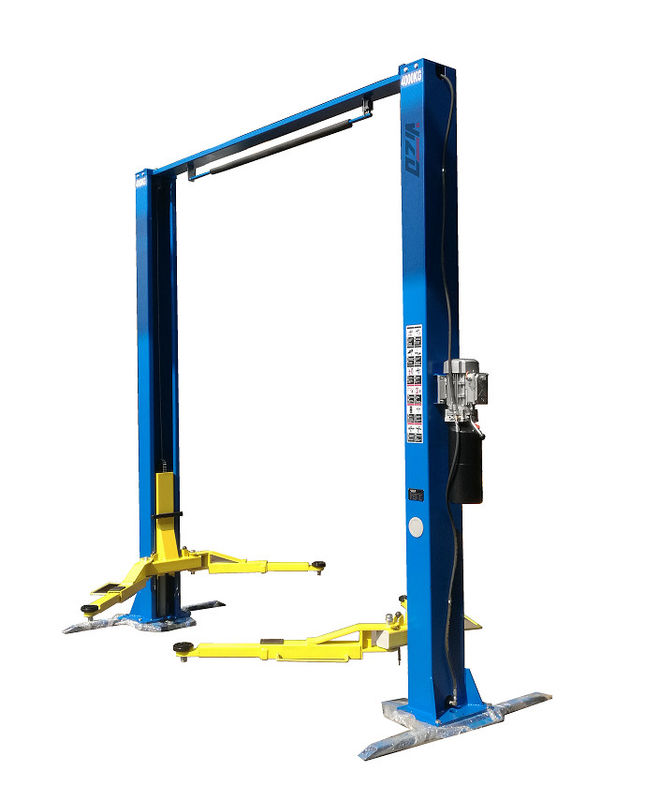

LS240 is a double side lock release two post lift, capacity 4000kg and lift height 1900mm. three stage swing arms and extension adapter. two 40mm cylinders and 4*4*121mm chain make for safer.
1 . Key Features:
This two post lift capacity of 4000KG,lifting height 1900mm. The materials of the whole machine are all from famous steel enterprises, steel grade Q235, and the other main parts such as cylinders, steel wire ropes, electrical components and power units are all from famous enterprises.
We have been producing this double side manual lock lift for more than ten years, with a quantity of 100,000 sets, stable quality and moderate price.
| Product | Clear Floor Lift Vehicle Lift/Double Side Lock Release |
| Product Code | LS240 |
| Capacity | 4.0 T/9000Lbs |
| Lifting height | 1900mm 74.8″ |
| Min height | 110 mm 4.3" |
| Max car width | 2810mm 110.6″ |
| Arms | 2-stage or 3-stage arms |
| Lift weight | 660kg |
| Power supply | 220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW |
2. Description:
- Quality built with CE-Certificate
- Manufacturers in accordance to ISO9001
- Double side lock relese
- Top beam design
- Foot Protection Device
- Equip height limit switch to ensure the lifting height safely, and prevent the vehicle roof from damaging.
- The minimum height of the lifting pad is 110 mm, easily lift, and suitable . for low-profile cars and SUVs.
- Reliable oil cylinder adopts chrome-plating honed .cylinder and piston rod, with Italian seals on hydraulic rams, ensure the long service life
3. Production Dimension:
4. Lift including and optional parts:
Including:
1*power unit, 1* lift.1*control box(optional)
Others including, anchor bolts,rubber door protectors, instruction manual,
Optional:
square pipe carriage or “U” type carriage
stage arm or 3-stage arm
extension adapter
reinforcement for base floor
control box
5. Delivery and package:
Package 1: lift(L*W*H) 2900*540*700mm
Package 2:power unit
